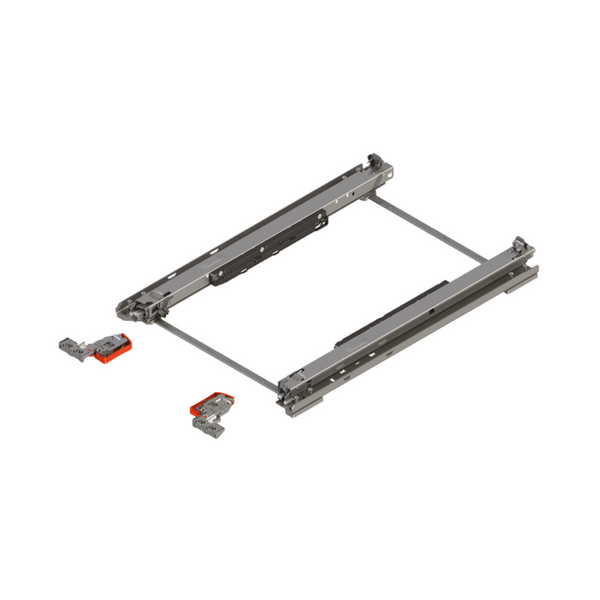

Blum 769R MOVENTO Waste/Recycle Set for 12″ Minimum Opening
$80.62
Blum MOVENTO 21″ waste/recycle set for 12″ minimum opening widths. The 769R5337SB is designed to be used with SERVO-DRIVE or TIP-ON BLUMOTION.
- For face frame & frameless applications
- Tool-free side-to-side, height & tilt adjustment
- Maximum 6mm (1/4″) cabinet bottom recess
- 135lb. static load capacity
- 16mm (5/8″) drawer side thickness
- 19mm (3/4″) over extension
Product Questions? Contact Support
Out of stock
Manufacturer: Blum
Part Number: 769R5337SB
Type: bottom mount waste/recycle set runners
Drawer Length: 21″
Minimum Opening Width: 12″

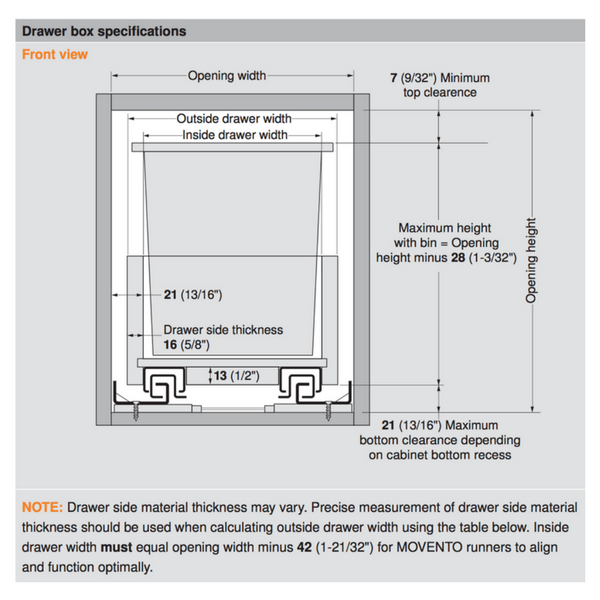

Inside Drawer Width: 10-11/32″
Contents:
Runner set w/ pre-mounted #6 x 1″ wood screws for installation (qty 8)
Standard locking device (qty 2) with #6 x 5/8″ wood screws for installation (qty 4)
Installation template and instructions
Warranty: Blum products are covered by a limited warranty. In the event the defective Blum hardware is obsolete or has been discontinued, Blum reserves the right to replace the defective hardware with a current offering. No guarantee of interchangeability is offered.
Weight | 9 lbs |
---|---|
Dimensions | 22 × 12 × 3 in |
