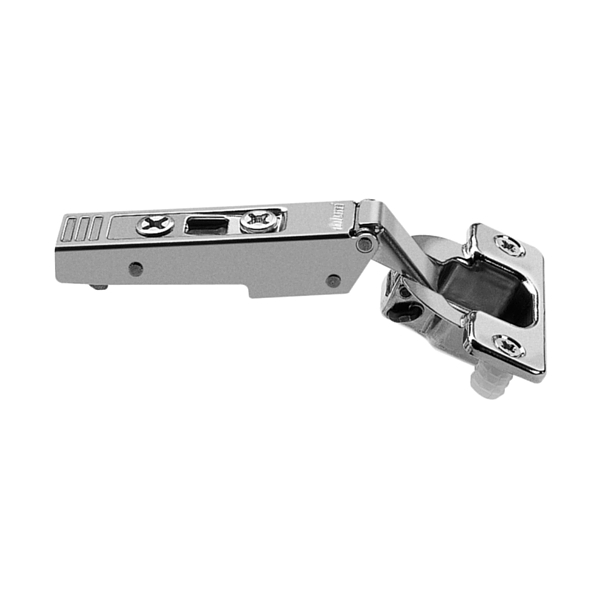

Blum 73T5580 CLIP top Standard 120°+ Hinge w/ Dowels
$1.76
Clip Top Standard 120 Degree Hinge – Full/Partial Overlays
- Opening angle: 120°+
- Cranking: corner merge application
- Closing mechanism: with spring
- Side adjustment: +/- 2 mm
- Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
- For larger overlays (21mm maximum)
Product Questions? Contact Support
In stock
Description
Manufacturer: Blum
Material: steel
Finish: nickel
Style: full overlay/self-closing
Cup Assembly: press-in
Type: European hinge
Cup Depth: 13mm
Bore Diameter: 35mm
Contents: 1 hinge
Mounting Hardware: sold separately
Warranty: Blum products are covered by a limited warranty. In the event the defective Blum hardware is obsolete or has been discontinued, Blum reserves the right to replace the defective hardware with a current offering. No guarantee of interchangeability is offered.
Additional information
Weight | 0.17 lbs |
---|---|
Dimensions | 4 × 2 × 2 in |
