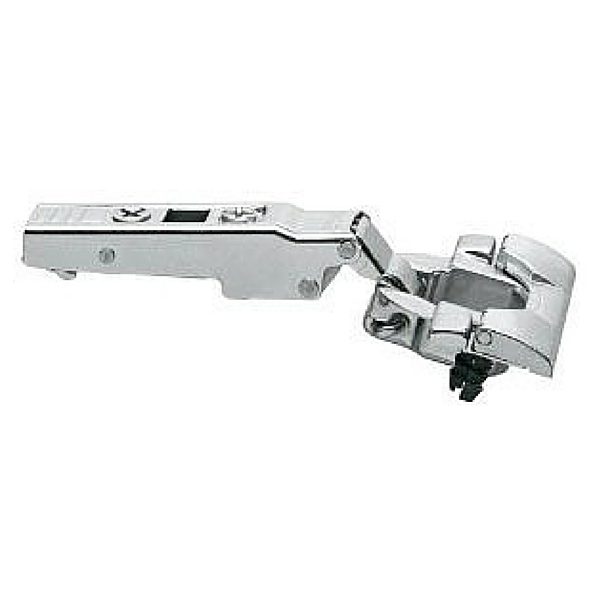

Blum 73T3590 CLIP top Standard 110°+ INSERTA Hinge
$2.74
CLIP top Standard 110 Degree + Hinge INSERTA Full Overlay/Self Closing
- For larger overlays (22mm maximum)
- For door thicknesses up to 26mm (1″)
- Closing mechanism: with spring
- Side adjustment: +/- 2 mm
- Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
Product Questions? Contact Support
In stock
Description
Manufacturer: Blum
Material: steel
Finish: nickel
Style: full overlay/self-closing
Type: European hinge
Clip Mount: INSERTA
Cup Depth: 13mm
Bore Diameter: 35mm
Contents: 1 hinge
Mounting Hardware: sold separately
Warranty: Blum products are covered by a limited warranty. In the event the defective Blum hardware is obsolete or has been discontinued, Blum reserves the right to replace the defective hardware with a current offering. No guarantee of interchangeability is offered.
Additional information
Weight | 0.18 lbs |
---|---|
Dimensions | 4 × 2 × 2 in |
