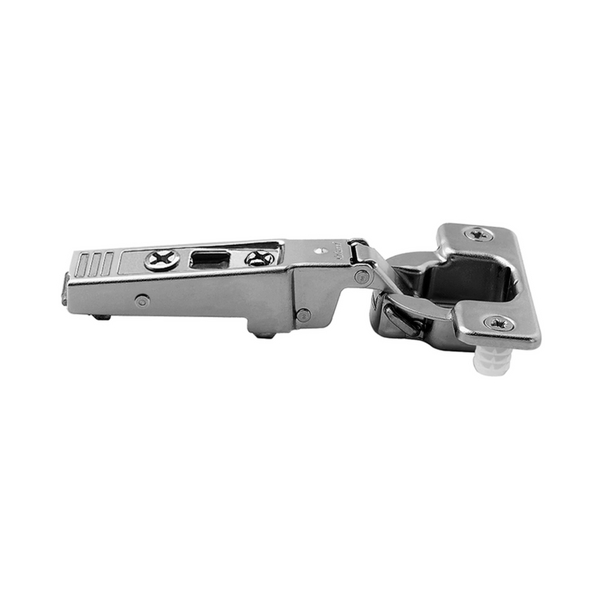

Blum 71T9580 CLIP top 95° Thick Door Hinge w/ Dowels
$2.38
CLIP top 95 Degree Thick Door Hinge
- Opening angle: 95°
- Cranking: corner merge application
- Closing mechanism: with spring
- Side adjustment: +/- 2 mm
- Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
- For door thicknesses up to 30mm (1-3/16″)
Product Questions? Contact Support
In stock
Description
Manufacturer: Blum
Material: steel
Finish: nickel
Style: full overlay/self-close
Cup Assembly: press-in
Type: European hinge

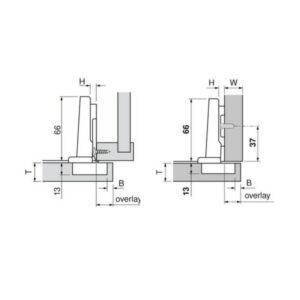

Cup Depth: 13mm
Bore Diameter: 35mm
Contents: 1 hinge

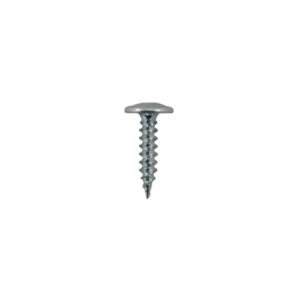

Mounting Hardware: sold separately
Warranty: Blum products are covered by a limited warranty. In the event the defective Blum hardware is obsolete or has been discontinued, Blum reserves the right to replace the defective hardware with a current offering. No guarantee of interchangeability is offered.
Additional information
Weight | 0.25 lbs |
---|---|
Dimensions | 4 × 2 × 2 in |
