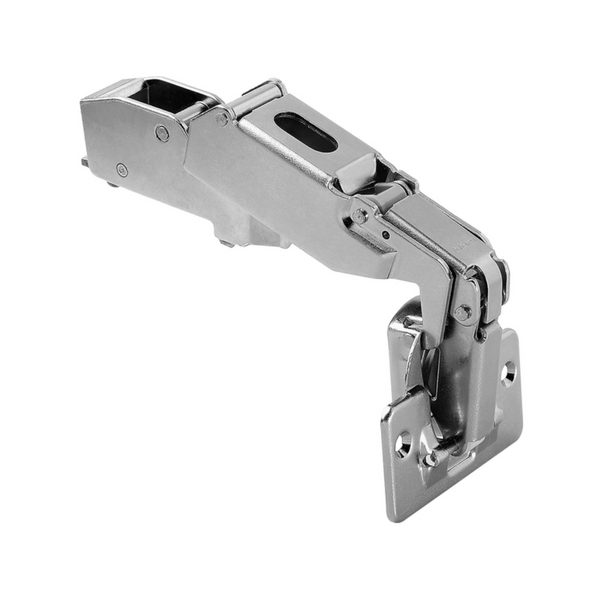

Blum 71T6650 CLIP top Wide Angle 170° Hinge
$7.33

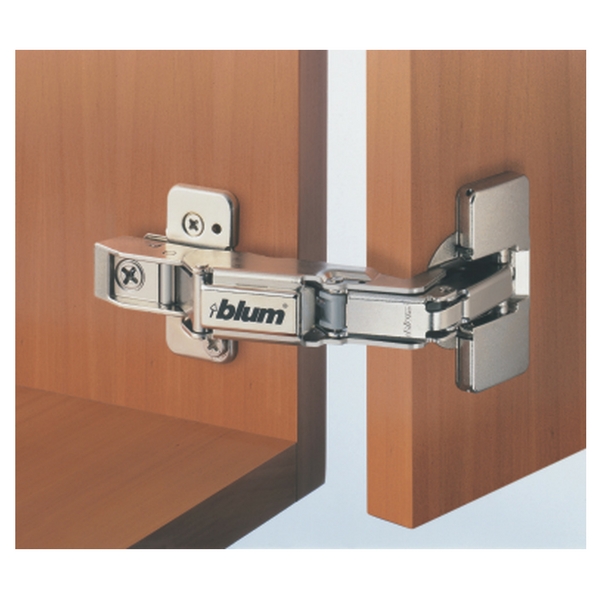

Clip Top Wide Angle 170 Degree Screw-On Hinge – Partial Overlay/Self Closing
- Opening angle: 170°
- Cranking: corner merge application
- Closing mechanism: with spring
- Side adjustment: +/- 2 mm
- Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
- For door thicknesses up to 24mm (15/16″)
Product Questions? Contact Support
Only 2 left in stock
Description
Manufacturer: Blum
Material: steel
Finish: nickel
Style: partial overlay/self-closing
Cup Assembly: screw-on
Type: European hinge
Cup Depth: 11mm
Bore Diameter: 35mm
Contents: 1 hinge
Mounting Hardware: sold separately
Warranty: Blum products are covered by a limited warranty. In the event the defective Blum hardware is obsolete or has been discontinued, Blum reserves the right to replace the defective hardware with a current offering. No guarantee of interchangeability is offered.
Additional information
Weight | 0.20 lbs |
---|---|
Dimensions | 4 × 2 × 2 in |
