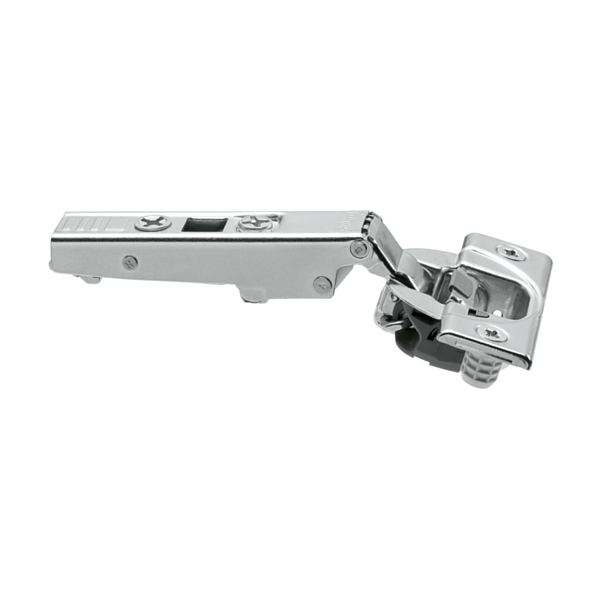

Blum 71B3580 CLIP top BLUMOTION 110° Hinge w/ Dowels

$3.75

CLIP top BLUMOTION 110 Degree Hinge – Full Overlay/Self Closing

  • Opening angle: 110°
  • Cranking: corner merge application BLUMOTION
  • Closing mechanism: with spring
  • Side adjustment: +/- 2 mm
  • Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
  • For door thicknesses up to 26mm (1″)

Product Questions? Contact Support

In stock

SKU: BL 71B3580 Category: Tags: ,

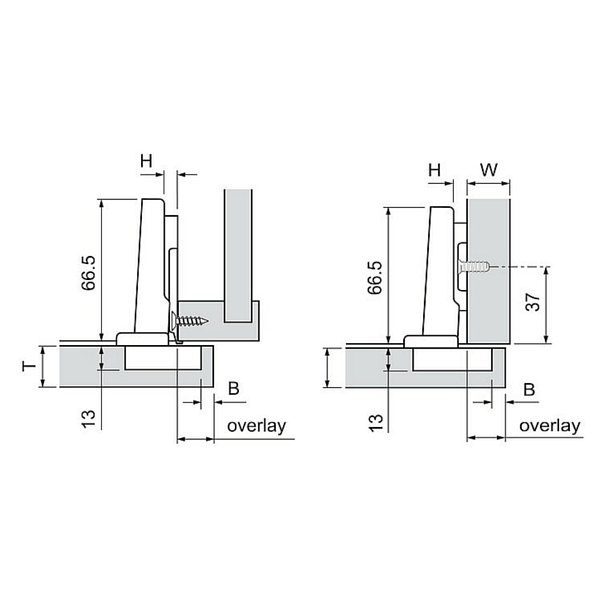

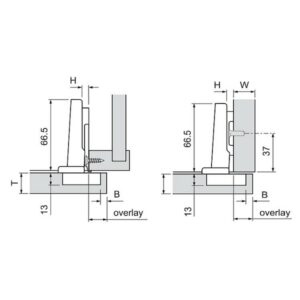

Frameless Application with Overlay of 5/8-11/16 Inch

Frameless Application with Overlay of 1/2 Inch

Frameless Application with Overlay of 3/8 Inch

Frameless Application with Overlay of 1/4 Inch

Frameless Inset Application with Flush Door

Face Frame Application with Overlay of 5/8 Inch

Face Frame Application with Overlay of 1/2 Inch

Face Frame Application with Overlay of 7/16 Inch

Face Frame Application with Overlay of 3/8 Inch
