Sugatsune NSDX-35 Adjustable Soft-Down Stay – Left
$20.79

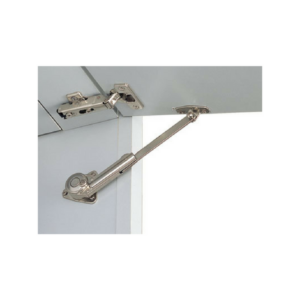

The Sugatsune NSDX-35LK (left) is designed for upward-opening lids and holds the door in a fully opened position. For use with piano, butt or concealed hinges. Speed adjustment screw allows easy adjustment. This adjustable soft-down stay has opening angles of 80°, 90° or 100°. *NSDX-35RK required.
Product Questions? Contact Support
In stock
Description
Manufacturer: Sugatsune
Part Number: NSDX-35LK
Type: adjustable soft-down stay
Material: steel
Opening Angle: 80°-100°
Contents: 1ea. left
Warranty: limited lifetime warranty
Additional information
Weight | 1.5 lbs |
---|---|
Dimensions | 5 × 3 × 1 in |

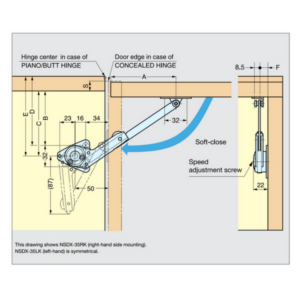

Installation & Overview Guides
Applicable torque range:
Per piece: 20-70 kg-cm (19-60 lbs-inch)
Per pair: 40-140 kg-cm (38-120 lbs-inch)
(torque rating = lid height x lid weight x 1/2)
Per piece: 20-70 kg-cm (19-60 lbs-inch)
Per pair: 40-140 kg-cm (38-120 lbs-inch)
(torque rating = lid height x lid weight x 1/2)
