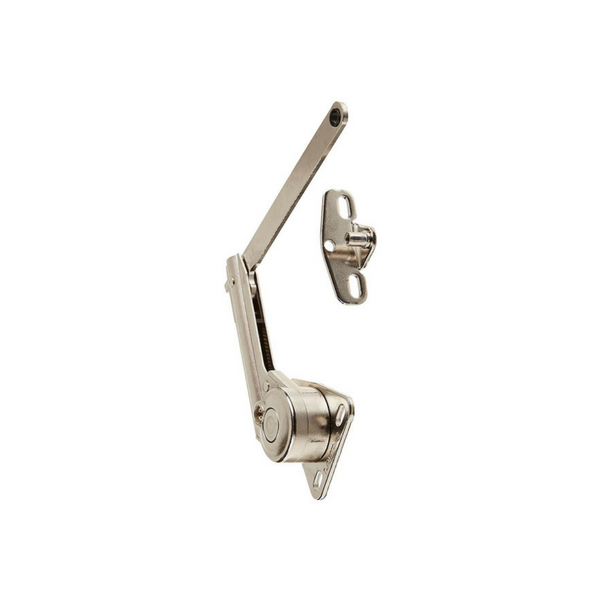

Sugatsune NSDX-20 Adjustable Soft-Down Lid Stay – Left
$20.16

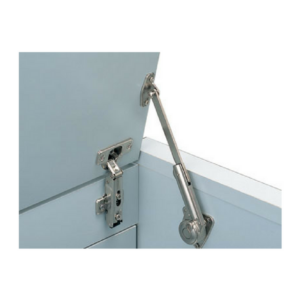

The Sugatsune NSDX-20 (left) top opening soft-down stay is designed to hold the door in fully opened position. For use with piano, butt or concealed hinges. Speed adjustment screw allows for easy adjustment.
Product Questions? Contact Support
Only 1 left in stock
Description
Manufacturer: Sugatsune/Lamp
Part Number: NSDX-20LK
Type: top opening soft-down stay
Material: steel
Opening Angle: 70° or 105°
Contents: 1ea.
Warranty: limited lifetime warranty
Additional information
Weight | 1.5 lbs |
---|---|
Dimensions | 6 × 3 × 3 in |

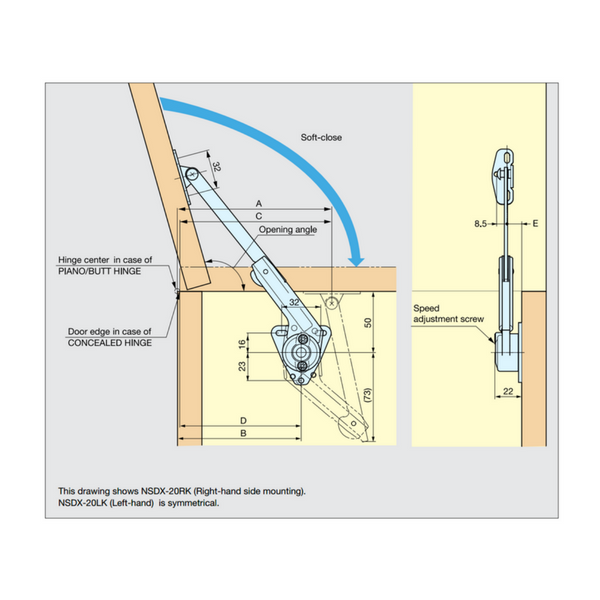

Installation & Overview Guides
Applicable torque range:
Per piece: 20-70 kg-cm (19-60 lbs-inch)
Per pair: 40-140 kg-cm (38-120 lbs-inch)
(torque rating = lid height x lid weight x 1/2)
Per piece: 20-70 kg-cm (19-60 lbs-inch)
Per pair: 40-140 kg-cm (38-120 lbs-inch)
(torque rating = lid height x lid weight x 1/2)
